Memahami Data

Memahami Data#

Memahami data (Data Understanding) merupakan tahap kedua pada data mining sesuai dengan CRISP-DM (The Cross-Industry Standard Process for Data Mining). Data Understanding adalah tahapan untuk memahami data secara mendalam. Di sini, kita melihat struktur datanya, memahami tipe dan distribusinya, serta mencari tahu apakah ada masalah seperti data yang hilang (Missing value), duplikasi, atau nilai yang tidak wajar (outlier). Intinya, tahap ini membantu kita memastikan bahwa data cukup bersih dan tahap ini sangat penting karena menjadi fondasi untuk analisis selanjutnya dan mempengaruhi hasil akhir.

Beberapa kegiatan dalam memahami diantaranya adalah:

  • Pengumpulan data

  • Ekplorasi data

  • Profilling data

Pengumpulan data terkait dengan IRIS Dataset#

Jadi terdapat data yang tersimpan pada dua databse yaitu Mysql dan PostgreSQL di aiven.io. Kemudian membuat koneksi database menggunakan dbeaver. Didalam dbeaver diperlukan nama host, user, database, password yang sesuai pada server database di aiven.io untuk membuat koneksi, kemudian menginputkan data iris dengan membuat tabel iris lalu membuat kolom id, class, sepal_length, sepal_width, petal_length, petal_width pada masing-masing database. setelah itu menginputkan data iris menggunakan SQL Script. (jangan lupa refresh setiap ada perubahan)

Disini menggunakan library pymysql untuk menghubungkan Python dengan database MySQL menggunakan protokol MySQL Connector dan library psycopg2 untuk menghubungkan Python dengan database PostgreSQL menggunakan protokol PostgreSQL Connector agar bisa mengumpulkan data iris dari masing-masing database.

Berikut tahapan proses pengumpulan data dari mysql#

%pip install pymysql
%pip install psycopg2

Requirement already satisfied: pymysql in /home/codespace/.python/current/lib/python3.12/site-packages (1.1.1)

Note: you may need to restart the kernel to use updated packages.

Requirement already satisfied: psycopg2 in /home/codespace/.python/current/lib/python3.12/site-packages (2.9.10)

Note: you may need to restart the kernel to use updated packages.

import pymysql
import os
from dotenv import load_dotenv

# Memuat variabel lingkungan dari .env
load_dotenv()

# Konfigurasi koneksi ke MySQL Aiven menggunakan variabel lingkungan
conn = pymysql.connect(
    host=os.getenv("MYSQL_HOST"),
    port=int(os.getenv("MYSQL_PORT")),
    user=os.getenv("MYSQL_USER"),
    password=os.getenv("MYSQL_PASSWORD"),
    database=os.getenv("MYSQL_DATABASE"),
    ssl={'ssl': {}}  # Mengaktifkan SSL
)

try:
    # Membuat cursor
    cursor = conn.cursor()

    # Eksekusi query untuk mengambil data
    query = "SELECT * FROM iris"
    cursor.execute(query)

    # Mengambil semua hasil
    data = cursor.fetchall()

    # Menampilkan data
    for row in data:
        print(row)

except pymysql.MySQLError as e:
    print("Error saat mengambil data:", e)

finally:
    # Menutup koneksi
    if cursor:
        cursor.close()
    if conn:
        conn.close()

---------------------------------------------------------------------------
gaierror                                  Traceback (most recent call last)
File ~/.python/current/lib/python3.12/site-packages/pymysql/connections.py:649, in Connection.connect(self, sock)
    648 try:
--> 649     sock = socket.create_connection(
    650         (self.host, self.port), self.connect_timeout, **kwargs
    651     )
    652     break

File ~/.python/current/lib/python3.12/socket.py:828, in create_connection(address, timeout, source_address, all_errors)
    827 exceptions = []
--> 828 for res in getaddrinfo(host, port, 0, SOCK_STREAM):
    829     af, socktype, proto, canonname, sa = res

File ~/.python/current/lib/python3.12/socket.py:963, in getaddrinfo(host, port, family, type, proto, flags)
    962 addrlist = []
--> 963 for res in _socket.getaddrinfo(host, port, family, type, proto, flags):
    964     af, socktype, proto, canonname, sa = res

gaierror: [Errno -2] Name or service not known

During handling of the above exception, another exception occurred:

OperationalError                          Traceback (most recent call last)
Cell In[2], line 9
      6 load_dotenv()
      8 # Konfigurasi koneksi ke MySQL Aiven menggunakan variabel lingkungan
----> 9 conn = pymysql.connect(
     10     host=os.getenv("MYSQL_HOST"),
     11     port=int(os.getenv("MYSQL_PORT")),
     12     user=os.getenv("MYSQL_USER"),
     13     password=os.getenv("MYSQL_PASSWORD"),
     14     database=os.getenv("MYSQL_DATABASE"),
     15     ssl={'ssl': {}}  # Mengaktifkan SSL
     16 )
     18 try:
     19     # Membuat cursor
     20     cursor = conn.cursor()

File ~/.python/current/lib/python3.12/site-packages/pymysql/connections.py:361, in Connection.__init__(self, user, password, host, database, unix_socket, port, charset, collation, sql_mode, read_default_file, conv, use_unicode, client_flag, cursorclass, init_command, connect_timeout, read_default_group, autocommit, local_infile, max_allowed_packet, defer_connect, auth_plugin_map, read_timeout, write_timeout, bind_address, binary_prefix, program_name, server_public_key, ssl, ssl_ca, ssl_cert, ssl_disabled, ssl_key, ssl_key_password, ssl_verify_cert, ssl_verify_identity, compress, named_pipe, passwd, db)
    359     self._sock = None
    360 else:
--> 361     self.connect()

File ~/.python/current/lib/python3.12/site-packages/pymysql/connections.py:716, in Connection.connect(self, sock)
    714     if DEBUG:
    715         print(exc.traceback)
--> 716     raise exc
    718 # If e is neither DatabaseError or IOError, It's a bug.
    719 # But raising AssertionError hides original error.
    720 # So just reraise it.
    721 raise

OperationalError: (2003, "Can't connect to MySQL server on 'mysql-20593d66-mysqlirispendata.i.aivencloud.com' ([Errno -2] Name or service not known)")

Berikut pengumpulan data dari Postgresql#

import psycopg2
import os
from dotenv import load_dotenv

# Memuat variabel dari file .env
load_dotenv()

try:
    # Koneksi ke PostgreSQL di Aiven
    conn = psycopg2.connect(
        host=os.getenv("POSTGRES_HOST"),
        port=os.getenv("POSTGRES_PORT"),
        user=os.getenv("POSTGRES_USER"),
        password=os.getenv("POSTGRES_PASSWORD"),
        database=os.getenv("POSTGRES_DATABASE"),
        sslmode="require"  # Wajib pakai SSL untuk keamanan
    )

    # Membuat cursor
    cursor = conn.cursor()

    # Eksekusi query untuk mengambil data dari tabel (misal: "iris")
    query = "SELECT * FROM iris"
    cursor.execute(query)

    # Mengambil semua hasil
    data = cursor.fetchall()

    # Menampilkan data
    for row in data:
        print(row)

except psycopg2.Error as e:
    print("Error saat menyambung ke PostgreSQL:", e)

finally:
    # Menutup koneksi
    if cursor:
        cursor.close()
    if conn:
        conn.close()

(2, 'Iris-setosa', 4.9, 3.0)
(3, 'Iris-setosa', 4.7, 3.2)
(4, 'Iris-setosa', 4.6, 3.1)
(5, 'Iris-setosa', 5.0, 3.6)
(6, 'Iris-setosa', 5.4, 3.9)
(7, 'Iris-setosa', 4.6, 3.4)
(8, 'Iris-setosa', 5.0, 3.4)
(9, 'Iris-setosa', 4.4, 2.9)
(10, 'Iris-setosa', 4.9, 3.1)
(11, 'Iris-setosa', 5.4, 3.7)
(12, 'Iris-setosa', 4.8, 3.4)
(13, 'Iris-setosa', 4.8, 3.0)
(14, 'Iris-setosa', 4.3, 3.0)
(15, 'Iris-setosa', 5.8, 4.0)
(16, 'Iris-setosa', 5.7, 4.4)
(17, 'Iris-setosa', 5.4, 3.9)
(18, 'Iris-setosa', 5.1, 3.5)
(19, 'Iris-setosa', 5.7, 3.8)
(20, 'Iris-setosa', 5.1, 3.8)
(21, 'Iris-setosa', 5.4, 3.4)
(22, 'Iris-setosa', 5.1, 3.7)
(23, 'Iris-setosa', 4.6, 3.6)
(24, 'Iris-setosa', 5.1, 3.3)
(25, 'Iris-setosa', 4.8, 3.4)
(26, 'Iris-setosa', 5.0, 3.0)
(27, 'Iris-setosa', 5.0, 3.4)
(28, 'Iris-setosa', 5.2, 3.5)
(29, 'Iris-setosa', 5.2, 3.4)
(30, 'Iris-setosa', 4.7, 3.2)
(31, 'Iris-setosa', 4.8, 3.1)
(32, 'Iris-setosa', 5.4, 3.4)
(33, 'Iris-setosa', 5.2, 4.1)
(34, 'Iris-setosa', 5.5, 4.2)
(35, 'Iris-setosa', 4.9, 3.1)
(36, 'Iris-setosa', 5.0, 3.2)
(37, 'Iris-setosa', 5.5, 3.5)
(38, 'Iris-setosa', 4.9, 3.1)
(39, 'Iris-setosa', 4.4, 3.0)
(40, 'Iris-setosa', 5.1, 3.4)
(41, 'Iris-setosa', 5.0, 3.5)
(42, 'Iris-setosa', 4.5, 2.3)
(43, 'Iris-setosa', 4.4, 3.2)
(44, 'Iris-setosa', 5.0, 3.5)
(45, 'Iris-setosa', 5.1, 3.8)
(46, 'Iris-setosa', 4.8, 3.0)
(47, 'Iris-setosa', 5.1, 3.8)
(48, 'Iris-setosa', 4.6, 3.2)
(49, 'Iris-setosa', 5.3, 3.7)
(50, 'Iris-setosa', 5.0, 3.3)
(51, 'Iris-versicolor', 7.0, 3.2)
(52, 'Iris-versicolor', 6.4, 3.2)
(53, 'Iris-versicolor', 6.9, 3.1)
(54, 'Iris-versicolor', 5.5, 2.3)
(55, 'Iris-versicolor', 6.5, 2.8)
(56, 'Iris-versicolor', 5.7, 2.8)
(57, 'Iris-versicolor', 6.3, 3.3)
(58, 'Iris-versicolor', 4.9, 2.4)
(59, 'Iris-versicolor', 6.6, 2.9)
(60, 'Iris-versicolor', 5.2, 2.7)
(61, 'Iris-versicolor', 5.0, 2.0)
(62, 'Iris-versicolor', 5.9, 3.0)
(63, 'Iris-versicolor', 6.0, 2.2)
(64, 'Iris-versicolor', 6.1, 2.9)
(65, 'Iris-versicolor', 5.6, 2.9)
(66, 'Iris-versicolor', 6.7, 3.1)
(67, 'Iris-versicolor', 5.6, 3.0)
(68, 'Iris-versicolor', 5.8, 2.7)
(69, 'Iris-versicolor', 6.2, 2.2)
(70, 'Iris-versicolor', 5.6, 2.5)
(71, 'Iris-versicolor', 5.9, 3.2)
(72, 'Iris-versicolor', 6.1, 2.8)
(73, 'Iris-versicolor', 6.3, 2.5)
(74, 'Iris-versicolor', 6.1, 2.8)
(75, 'Iris-versicolor', 6.4, 2.9)
(76, 'Iris-versicolor', 6.6, 3.0)
(77, 'Iris-versicolor', 6.8, 2.8)
(78, 'Iris-versicolor', 6.7, 3.0)
(79, 'Iris-versicolor', 6.0, 2.9)
(80, 'Iris-versicolor', 5.7, 2.6)
(81, 'Iris-versicolor', 5.5, 2.4)
(82, 'Iris-versicolor', 5.5, 2.4)
(83, 'Iris-versicolor', 5.8, 2.7)
(84, 'Iris-versicolor', 6.0, 2.7)
(85, 'Iris-versicolor', 5.4, 3.0)
(86, 'Iris-versicolor', 6.0, 3.4)
(87, 'Iris-versicolor', 6.7, 3.1)
(88, 'Iris-versicolor', 6.3, 2.3)
(89, 'Iris-versicolor', 5.6, 3.0)
(90, 'Iris-versicolor', 5.5, 2.5)
(91, 'Iris-versicolor', 5.5, 2.6)
(92, 'Iris-versicolor', 6.1, 3.0)
(93, 'Iris-versicolor', 5.8, 2.6)
(94, 'Iris-versicolor', 5.0, 2.3)
(95, 'Iris-versicolor', 5.6, 2.7)
(96, 'Iris-versicolor', 5.7, 3.0)
(97, 'Iris-versicolor', 5.7, 2.9)
(98, 'Iris-versicolor', 6.2, 2.9)
(99, 'Iris-versicolor', 5.1, 2.5)
(100, 'Iris-versicolor', 5.7, 2.8)
(102, 'Iris-virginica', 5.8, 2.7)
(103, 'Iris-virginica', 7.1, 3.0)
(104, 'Iris-virginica', 6.3, 2.9)
(105, 'Iris-virginica', 6.5, 3.0)
(106, 'Iris-virginica', 7.6, 3.0)
(107, 'Iris-virginica', 4.9, 2.5)
(108, 'Iris-virginica', 7.3, 2.9)
(109, 'Iris-virginica', 6.7, 2.5)
(110, 'Iris-virginica', 7.2, 3.6)
(111, 'Iris-virginica', 6.5, 3.2)
(112, 'Iris-virginica', 6.4, 2.7)
(113, 'Iris-virginica', 6.8, 3.0)
(114, 'Iris-virginica', 5.7, 2.5)
(115, 'Iris-virginica', 5.8, 2.8)
(116, 'Iris-virginica', 6.4, 3.2)
(117, 'Iris-virginica', 6.5, 3.0)
(118, 'Iris-virginica', 7.7, 3.8)
(119, 'Iris-virginica', 7.7, 2.6)
(120, 'Iris-virginica', 6.0, 2.2)
(121, 'Iris-virginica', 6.9, 3.2)
(122, 'Iris-virginica', 5.6, 2.8)
(123, 'Iris-virginica', 7.7, 2.8)
(124, 'Iris-virginica', 6.3, 2.7)
(125, 'Iris-virginica', 6.7, 3.3)
(126, 'Iris-virginica', 7.2, 3.2)
(127, 'Iris-virginica', 6.2, 2.8)
(128, 'Iris-virginica', 6.1, 3.0)
(129, 'Iris-virginica', 6.4, 2.8)
(130, 'Iris-virginica', 7.2, 3.0)
(131, 'Iris-virginica', 7.4, 2.8)
(132, 'Iris-virginica', 7.9, 3.8)
(133, 'Iris-virginica', 6.4, 2.8)
(134, 'Iris-virginica', 6.3, 2.8)
(135, 'Iris-virginica', 6.1, 2.6)
(136, 'Iris-virginica', 7.7, 3.0)
(137, 'Iris-virginica', 6.3, 3.4)
(138, 'Iris-virginica', 6.4, 3.1)
(139, 'Iris-virginica', 6.0, 3.0)
(140, 'Iris-virginica', 6.9, 3.1)
(141, 'Iris-virginica', 6.7, 3.1)
(142, 'Iris-virginica', 6.9, 3.1)
(143, 'Iris-virginica', 5.8, 2.7)
(144, 'Iris-virginica', 6.8, 3.2)
(145, 'Iris-virginica', 6.7, 3.3)
(146, 'Iris-virginica', 6.7, 3.0)
(147, 'Iris-virginica', 6.3, 2.5)
(148, 'Iris-virginica', 6.5, 3.0)
(149, 'Iris-virginica', 6.2, 3.4)
(150, 'Iris-virginica', 5.9, 3.0)
(1, 'Iris-setosa', 20.1, 30.5)
(101, 'Iris-virginica', 70.1, 50.1)

Berikut cara menggabungkan data dari database Mysql dan Postgresql#

%pip install pandas
%pip install sqlalchemy

Requirement already satisfied: pandas in /home/codespace/.local/lib/python3.12/site-packages (2.2.3)
Requirement already satisfied: numpy>=1.26.0 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from pandas) (2.1.3)
Requirement already satisfied: python-dateutil>=2.8.2 in /home/codespace/.local/lib/python3.12/site-packages (from pandas) (2.9.0.post0)
Requirement already satisfied: pytz>=2020.1 in /home/codespace/.local/lib/python3.12/site-packages (from pandas) (2024.2)
Requirement already satisfied: tzdata>=2022.7 in /home/codespace/.local/lib/python3.12/site-packages (from pandas) (2024.2)
Requirement already satisfied: six>=1.5 in /home/codespace/.local/lib/python3.12/site-packages (from python-dateutil>=2.8.2->pandas) (1.17.0)
Note: you may need to restart the kernel to use updated packages.
Requirement already satisfied: sqlalchemy in /usr/local/python/3.12.1/lib/python3.12/site-packages (2.0.38)
Requirement already satisfied: greenlet!=0.4.17 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from sqlalchemy) (3.1.1)
Requirement already satisfied: typing-extensions>=4.6.0 in /home/codespace/.local/lib/python3.12/site-packages (from sqlalchemy) (4.12.2)
Note: you may need to restart the kernel to use updated packages.

import pymysql
import psycopg2
import pandas as pd
from sqlalchemy import create_engine
import os
from dotenv import load_dotenv

# Memuat variabel dari file .env
load_dotenv()

# Buat engine SQLAlchemy untuk MySQL
mysql_engine = create_engine(
    f"mysql+pymysql://{os.getenv('MYSQL_USER')}:{os.getenv('MYSQL_PASSWORD')}"
    f"@{os.getenv('MYSQL_HOST')}:{os.getenv('MYSQL_PORT')}/{os.getenv('MYSQL_DATABASE')}"
)

# Buat engine SQLAlchemy untuk PostgreSQL
postgres_engine = create_engine(
    f"postgresql+psycopg2://{os.getenv('POSTGRES_USER')}:{os.getenv('POSTGRES_PASSWORD')}"
    f"@{os.getenv('POSTGRES_HOST')}:{os.getenv('POSTGRES_PORT')}/{os.getenv('POSTGRES_DATABASE')}"
)

# Query untuk mengambil data
mysql_query = "SELECT id, class, petal_length, petal_width FROM iris"
postgres_query = "SELECT id, sepal_length, sepal_width FROM iris"

try:
    # Ambil data dari MySQL dan PostgreSQL sebagai DataFrame Pandas
    df_mysql = pd.read_sql(mysql_query, mysql_engine)
    df_postgres = pd.read_sql(postgres_query, postgres_engine)

    # Gabungkan Data berdasarkan 'id'
    df_combined = pd.merge(df_mysql, df_postgres, on="id", how="inner")

    # Tampilkan hasil
    print(df_combined.head())

    # Simpan hasil ke CSV dengan encoding UTF-8
    df_combined.to_csv("hasil_gabungan.csv", index=False, encoding="utf-8")
    print("Data berhasil disimpan ke 'hasil_gabungan.csv'.")

except Exception as e:
    print("Terjadi kesalahan:", e)

finally:
    mysql_engine.dispose()
    postgres_engine.dispose()

   id        class  petal_length  petal_width  sepal_length  sepal_width
0   1  Iris-setosa          86.4         70.0          20.1         30.5
1   2  Iris-setosa           1.4          0.2           4.9          3.0
2   3  Iris-setosa           1.3          0.2           4.7          3.2
3   4  Iris-setosa           1.5          0.2           4.6          3.1
4   5  Iris-setosa           1.4          0.2           5.0          3.6
Data berhasil disimpan ke 'hasil_gabungan.csv'.

Ekplorasi data set IRIS#

Menentukan nilai mean, median, mode, standar deviasi, minimum, maksimum dan nilai missing dari data iris yang telah digabung

import pandas as pd

# Baca file CSV
df = pd.read_csv("hasil_gabungan.csv")

# Hapus kolom 'id' dari analisis statistik deskriptif jika ada
if 'id' in df.columns:
    df_numeric = df.select_dtypes(include=['number']).drop(columns=['id'])
else:
    df_numeric = df.select_dtypes(include=['number'])

# Hitung statistik deskriptif yang diminta
stats = pd.DataFrame({
    "Mean": df_numeric.mean(),
    "Median": df_numeric.median(),
    "Mode": df_numeric.mode().iloc[0],  # Mode bisa lebih dari satu nilai, ambil yang pertama
    "Std Dev": df_numeric.std(ddof=0),  # Standar deviasi sampel (default Pandas)
    "Min": df_numeric.min(),
    "Max": df_numeric.max(),
    "Missing": df_numeric.isnull().sum()
})

# Tampilkan hasil
print(stats)
print("\n")
print(df.info())

                  Mean  Median  Mode   Std Dev  Min   Max  Missing
petal_length  4.688667     4.4   1.5  8.315732  1.0  86.4        0
petal_width   1.916000     1.3   0.2  6.465004  0.1  70.0        0
sepal_length  6.368667     5.8   5.0  5.411212  4.3  70.1        0
sepal_width   3.546000     3.0   3.0  4.440760  2.0  50.1        0


<class 'pandas.core.frame.DataFrame'>
RangeIndex: 150 entries, 0 to 149
Data columns (total 6 columns):
 #   Column        Non-Null Count  Dtype
---  ------        --------------  -----
 0   id            150 non-null    int64
 1   class         150 non-null    object
 2   petal_length  150 non-null    float64
 3   petal_width   150 non-null    float64
 4   sepal_length  150 non-null    float64
 5   sepal_width   150 non-null    float64
dtypes: float64(4), int64(1), object(1)
memory usage: 7.2+ KB
None

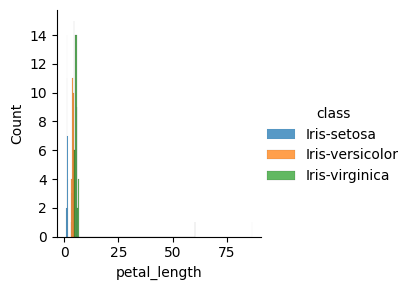

Visualisasi Data Histogram : untuk melihat distribusi data numerik.#

import matplotlib.pyplot as plt
import seaborn as sns

# histogram untuk semua kolom numerik
iris=pd.read_csv("hasil_gabungan.csv")
sns.FacetGrid(iris, hue="class", height=3).map(sns.histplot, "petal_length").add_legend()
sns.FacetGrid(iris, hue="class", height=3).map(sns.histplot, "petal_width").add_legend()
sns.FacetGrid(iris, hue="class", height=3).map(sns.histplot, "sepal_length").add_legend()
sns.FacetGrid(iris, hue="class", height=3).map(sns.histplot, "sepal_width").add_legend()
plt.show()
_images/e128939cfaf9f73df5c81b9a05713f93a8318b536bf850abc6f1d063c39f261b.png _images/5af2eb683c1af9f99e0c3369d216fb1ef40a124604224b6d96500b7421126596.png _images/868eaf8185808062ee2e0b6a8bfeb5d5635ccd62b042d69585ab4a445e98970f.png _images/9592d379ff3d687dbd2ccfc46bb703db3fd86f33dc5142f292c6c0194464e57f.png

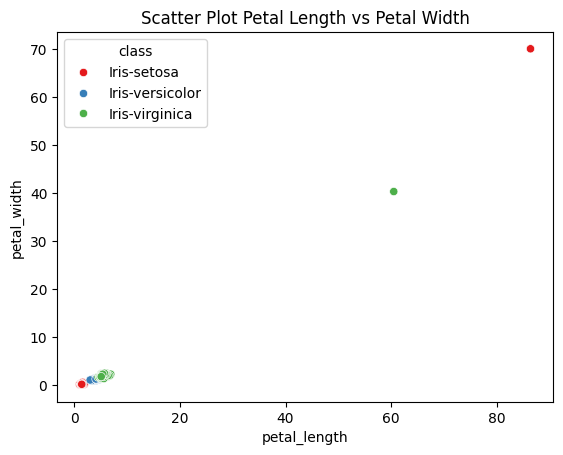

Visualisasi Data Scatter Plot: Untuk melihat hubungan antara dua variabel numerik.#

# Scatter plot antara panjang kelopak dan lebar kelopak
sns.scatterplot(data=df, x="petal_length", y="petal_width", hue="class", palette="Set1")
plt.title("Scatter Plot Petal Length vs Petal Width")
plt.show()
_images/06cde1551071f3112ebc5f5d019dd261ec51b028c0565a516ed468f2159eabaf.png

Profiling data set IRIS#

%pip install ydata-profiling
%pip install ipywidgets

Requirement already satisfied: ydata-profiling in /usr/local/python/3.12.1/lib/python3.12/site-packages (4.12.2)
Requirement already satisfied: scipy<1.16,>=1.4.1 in /home/codespace/.local/lib/python3.12/site-packages (from ydata-profiling) (1.14.1)
Requirement already satisfied: pandas!=1.4.0,<3,>1.1 in /home/codespace/.local/lib/python3.12/site-packages (from ydata-profiling) (2.2.3)
Requirement already satisfied: matplotlib>=3.5 in /home/codespace/.local/lib/python3.12/site-packages (from ydata-profiling) (3.9.3)
Requirement already satisfied: pydantic>=2 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from ydata-profiling) (2.10.6)
Requirement already satisfied: PyYAML<6.1,>=5.0.0 in /home/codespace/.local/lib/python3.12/site-packages (from ydata-profiling) (6.0.2)
Requirement already satisfied: jinja2<3.2,>=2.11.1 in /home/codespace/.local/lib/python3.12/site-packages (from ydata-profiling) (3.1.4)
Requirement already satisfied: visions<0.8.0,>=0.7.5 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from visions[type_image_path]<0.8.0,>=0.7.5->ydata-profiling) (0.7.6)
Requirement already satisfied: numpy<2.2,>=1.16.0 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from ydata-profiling) (2.1.3)
Requirement already satisfied: htmlmin==0.1.12 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from ydata-profiling) (0.1.12)
Requirement already satisfied: phik<0.13,>=0.11.1 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from ydata-profiling) (0.12.4)
Requirement already satisfied: requests<3,>=2.24.0 in /home/codespace/.local/lib/python3.12/site-packages (from ydata-profiling) (2.32.3)
Requirement already satisfied: tqdm<5,>=4.48.2 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from ydata-profiling) (4.67.1)
Requirement already satisfied: seaborn<0.14,>=0.10.1 in /home/codespace/.local/lib/python3.12/site-packages (from ydata-profiling) (0.13.2)
Requirement already satisfied: multimethod<2,>=1.4 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from ydata-profiling) (1.12)
Requirement already satisfied: statsmodels<1,>=0.13.2 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from ydata-profiling) (0.14.4)
Requirement already satisfied: typeguard<5,>=3 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from ydata-profiling) (4.4.2)
Requirement already satisfied: imagehash==4.3.1 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from ydata-profiling) (4.3.1)
Requirement already satisfied: wordcloud>=1.9.3 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from ydata-profiling) (1.9.4)
Requirement already satisfied: dacite>=1.8 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from ydata-profiling) (1.9.2)
Requirement already satisfied: PyWavelets in /usr/local/python/3.12.1/lib/python3.12/site-packages (from imagehash==4.3.1->ydata-profiling) (1.8.0)
Requirement already satisfied: pillow in /home/codespace/.local/lib/python3.12/site-packages (from imagehash==4.3.1->ydata-profiling) (11.0.0)
Requirement already satisfied: MarkupSafe>=2.0 in /home/codespace/.local/lib/python3.12/site-packages (from jinja2<3.2,>=2.11.1->ydata-profiling) (3.0.2)
Requirement already satisfied: contourpy>=1.0.1 in /home/codespace/.local/lib/python3.12/site-packages (from matplotlib>=3.5->ydata-profiling) (1.3.1)
Requirement already satisfied: cycler>=0.10 in /home/codespace/.local/lib/python3.12/site-packages (from matplotlib>=3.5->ydata-profiling) (0.12.1)
Requirement already satisfied: fonttools>=4.22.0 in /home/codespace/.local/lib/python3.12/site-packages (from matplotlib>=3.5->ydata-profiling) (4.55.3)
Requirement already satisfied: kiwisolver>=1.3.1 in /home/codespace/.local/lib/python3.12/site-packages (from matplotlib>=3.5->ydata-profiling) (1.4.7)
Requirement already satisfied: packaging>=20.0 in /home/codespace/.local/lib/python3.12/site-packages (from matplotlib>=3.5->ydata-profiling) (24.2)
Requirement already satisfied: pyparsing>=2.3.1 in /home/codespace/.local/lib/python3.12/site-packages (from matplotlib>=3.5->ydata-profiling) (3.2.0)
Requirement already satisfied: python-dateutil>=2.7 in /home/codespace/.local/lib/python3.12/site-packages (from matplotlib>=3.5->ydata-profiling) (2.9.0.post0)
Requirement already satisfied: pytz>=2020.1 in /home/codespace/.local/lib/python3.12/site-packages (from pandas!=1.4.0,<3,>1.1->ydata-profiling) (2024.2)
Requirement already satisfied: tzdata>=2022.7 in /home/codespace/.local/lib/python3.12/site-packages (from pandas!=1.4.0,<3,>1.1->ydata-profiling) (2024.2)
Requirement already satisfied: joblib>=0.14.1 in /home/codespace/.local/lib/python3.12/site-packages (from phik<0.13,>=0.11.1->ydata-profiling) (1.4.2)
Requirement already satisfied: annotated-types>=0.6.0 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from pydantic>=2->ydata-profiling) (0.7.0)
Requirement already satisfied: pydantic-core==2.27.2 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from pydantic>=2->ydata-profiling) (2.27.2)
Requirement already satisfied: typing-extensions>=4.12.2 in /home/codespace/.local/lib/python3.12/site-packages (from pydantic>=2->ydata-profiling) (4.12.2)
Requirement already satisfied: charset-normalizer<4,>=2 in /home/codespace/.local/lib/python3.12/site-packages (from requests<3,>=2.24.0->ydata-profiling) (3.4.0)
Requirement already satisfied: idna<4,>=2.5 in /home/codespace/.local/lib/python3.12/site-packages (from requests<3,>=2.24.0->ydata-profiling) (3.10)
Requirement already satisfied: urllib3<3,>=1.21.1 in /home/codespace/.local/lib/python3.12/site-packages (from requests<3,>=2.24.0->ydata-profiling) (2.2.3)
Requirement already satisfied: certifi>=2017.4.17 in /home/codespace/.local/lib/python3.12/site-packages (from requests<3,>=2.24.0->ydata-profiling) (2024.8.30)
Requirement already satisfied: patsy>=0.5.6 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from statsmodels<1,>=0.13.2->ydata-profiling) (1.0.1)
Requirement already satisfied: attrs>=19.3.0 in /home/codespace/.local/lib/python3.12/site-packages (from visions<0.8.0,>=0.7.5->visions[type_image_path]<0.8.0,>=0.7.5->ydata-profiling) (24.2.0)
Requirement already satisfied: networkx>=2.4 in /home/codespace/.local/lib/python3.12/site-packages (from visions<0.8.0,>=0.7.5->visions[type_image_path]<0.8.0,>=0.7.5->ydata-profiling) (3.2.1)
Requirement already satisfied: six>=1.5 in /home/codespace/.local/lib/python3.12/site-packages (from python-dateutil>=2.7->matplotlib>=3.5->ydata-profiling) (1.17.0)
Note: you may need to restart the kernel to use updated packages.
Requirement already satisfied: ipywidgets in /usr/local/python/3.12.1/lib/python3.12/site-packages (8.1.5)
Requirement already satisfied: comm>=0.1.3 in /home/codespace/.local/lib/python3.12/site-packages (from ipywidgets) (0.2.2)
Requirement already satisfied: ipython>=6.1.0 in /home/codespace/.local/lib/python3.12/site-packages (from ipywidgets) (8.30.0)
Requirement already satisfied: traitlets>=4.3.1 in /home/codespace/.local/lib/python3.12/site-packages (from ipywidgets) (5.14.3)
Requirement already satisfied: widgetsnbextension~=4.0.12 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from ipywidgets) (4.0.13)
Requirement already satisfied: jupyterlab-widgets~=3.0.12 in /usr/local/python/3.12.1/lib/python3.12/site-packages (from ipywidgets) (3.0.13)
Requirement already satisfied: decorator in /home/codespace/.local/lib/python3.12/site-packages (from ipython>=6.1.0->ipywidgets) (5.1.1)
Requirement already satisfied: jedi>=0.16 in /home/codespace/.local/lib/python3.12/site-packages (from ipython>=6.1.0->ipywidgets) (0.19.2)
Requirement already satisfied: matplotlib-inline in /home/codespace/.local/lib/python3.12/site-packages (from ipython>=6.1.0->ipywidgets) (0.1.7)
Requirement already satisfied: pexpect>4.3 in /home/codespace/.local/lib/python3.12/site-packages (from ipython>=6.1.0->ipywidgets) (4.9.0)
Requirement already satisfied: prompt_toolkit<3.1.0,>=3.0.41 in /home/codespace/.local/lib/python3.12/site-packages (from ipython>=6.1.0->ipywidgets) (3.0.48)
Requirement already satisfied: pygments>=2.4.0 in /home/codespace/.local/lib/python3.12/site-packages (from ipython>=6.1.0->ipywidgets) (2.18.0)
Requirement already satisfied: stack_data in /home/codespace/.local/lib/python3.12/site-packages (from ipython>=6.1.0->ipywidgets) (0.6.3)
Requirement already satisfied: parso<0.9.0,>=0.8.4 in /home/codespace/.local/lib/python3.12/site-packages (from jedi>=0.16->ipython>=6.1.0->ipywidgets) (0.8.4)
Requirement already satisfied: ptyprocess>=0.5 in /home/codespace/.local/lib/python3.12/site-packages (from pexpect>4.3->ipython>=6.1.0->ipywidgets) (0.7.0)
Requirement already satisfied: wcwidth in /home/codespace/.local/lib/python3.12/site-packages (from prompt_toolkit<3.1.0,>=3.0.41->ipython>=6.1.0->ipywidgets) (0.2.13)
Requirement already satisfied: executing>=1.2.0 in /home/codespace/.local/lib/python3.12/site-packages (from stack_data->ipython>=6.1.0->ipywidgets) (2.1.0)
Requirement already satisfied: asttokens>=2.1.0 in /home/codespace/.local/lib/python3.12/site-packages (from stack_data->ipython>=6.1.0->ipywidgets) (3.0.0)
Requirement already satisfied: pure-eval in /home/codespace/.local/lib/python3.12/site-packages (from stack_data->ipython>=6.1.0->ipywidgets) (0.2.3)
Note: you may need to restart the kernel to use updated packages.

import pandas as pd
from ydata_profiling import ProfileReport

#baca dataset
df = pd.read_csv("hasil_gabungan.csv")

#laporan profiling
profile = ProfileReport(df, explorative = True)

# Simpan laporan ke file HTML
profile.to_file("iris_profiling_report.html")

# Tampilkan di notebook (opsional)
profile.to_notebook_iframe()

Macam-macam tipe data didalam data mining#

  1. Nominal / kategorikal
    Atribut nominal adalah tipe data yang hanya digunakan untuk memberi label atau kategori pada suatu objek tanpa memiliki urutan atau tingkatan tertentu. Data ini tidak memiliki makna numerik dan tidak bisa dilakukan perhitungan matematika seperti penjumlahan atau pengurangan. Misalnya, dalam sebuah survei, seseorang mungkin ditanya tentang warna rambutnya. Jawaban seperti “Hitam”, “Coklat”, atau “Pirang” tidak memiliki tingkatan yang menunjukkan bahwa satu warna lebih tinggi dari yang lain. Warna rambut hanya digunakan untuk mengelompokkan individu berdasarkan kategori tertentu.

  2. Ordinal
    Atribut ordinal adalah data yang memiliki kategori seperti nominal, tetapi dengan urutan atau tingkatan tertentu. Meskipun ada urutan, jarak antara satu kategori dengan kategori lainnya tidak bisa diukur secara pasti. Misalnya terdapat tingkatan pendidikan (SD, SMP, SMA, S1, S2, S3) dan tingkatan risiko investasi (Rendah, Sedang, Tinggi). Semua memiliki urutan, tetapi tidak ada kepastian mengenai seberapa besar jarak antara satu tingkat ke tingkat berikutnya.

  3. Numeriks
    Atribut numerik adalah tipe data yang merepresentasikan nilai angka dan dapat digunakan dalam perhitungan matematika, seperti penjumlahan, pengurangan, perkalian, atau pembagian. Data ini umumnya diperoleh melalui proses pengukuran atau penghitungan.

  • Diskrit
    Data diskrit adalah data yang hanya bisa memiliki nilai dalam jumlah terbatas, biasanya dalam bentuk bilangan bulat. Data ini diperoleh dari proses penghitungan (counting), bukan pengukuran. Misalnya, jumlah anak dalam satu keluarga bisa bernilai 0, 1, 2, 3, atau lebih, tetapi tidak mungkin bernilai 2,5 anak. Begitu juga dengan jumlah mobil di parkiran atau jumlah siswa dalam kelas. Semua data ini tidak memiliki nilai pecahan karena jumlahnya dihitung sebagai angka yang bulat.

  • Kontinu
    Data kontinu adalah data numerik yang bisa memiliki nilai pecahan atau desimal karena diperoleh melalui pengukuran (measurement). Nilainya bisa bervariasi dalam rentang tertentu dan dapat dibagi menjadi bagian yang lebih kecil tanpa kehilangan makna. Misalnya, tinggi seseorang bisa bernilai 165,3 cm, berat badan bisa 60,5 kg, dan suhu udara bisa 28,7°C. Dalam semua contoh ini, nilainya tidak terbatas pada angka bulat karena pengukuran yang lebih presisi dapat memberikan angka yang lebih detail.

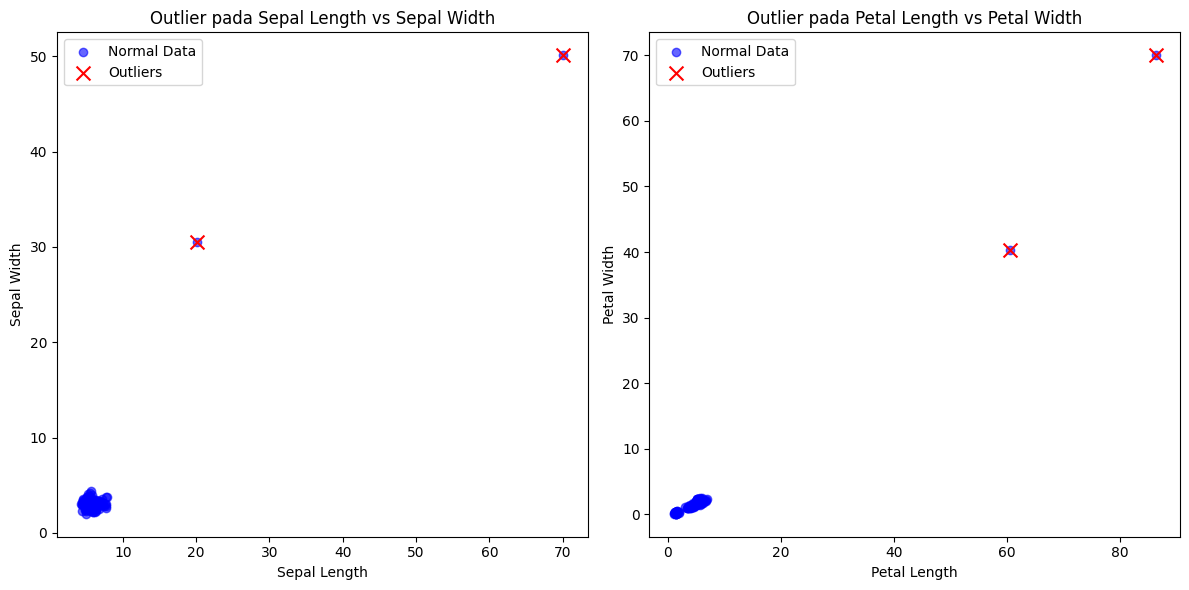

Konsep Outlier Detection dengan KNN (K-Nearest Neighbors)#

Metode KNN untuk deteksi outlier didasarkan pada jarak antara sebuah titik data dengan titik-titik terdekatnya (neighbors). Jika sebuah titik data memiliki jarak yang jauh dari tetangganya, maka kemungkinan besar titik tersebut adalah outlier.

Langkah-langkah :#

  1. Menghitung jarak antara data baru dan semua data dalam dataset menggunakan rumus Euclidian Distance / Manhattan Distance / Minkowski Distance .

  2. Memilih K tetangga terdekat.

  3. Merangking hasil perhitungan jarak secara ascending, dan jarak yang paling besar bisa disebut outlier.

  4. Untuk klasifikasi : ambil mayoritas kelas dari K tetangga.

  5. Untuk regresi : ambil rata-rata nilai dari K tetangga.

Metode menghitung jarak :#

  1. Euclidian Distance
    Euclidian Distance merupakan metrik jarak yang banyak digunakan. Secara matematis, jarak ini adalah akar kuadrat dari jumlah selisih antara dua titik data yang berbeda. Rumus : $\(\sqrt{(x_2 - x_1)^2 + (y_2 - y_1)^2}\)$

  2. Manhattan Distance
    Manhattan Distance digunakan untuk menghitung jarak antara dua koordinat dalam jalur seperti grid.
    Rumus : $\(|x_2 - x_1| + |y_2 - y_1|\)$

  3. Minkowski Distance
    Minkowski Distance merupakan generalisasi dari metrik jarak Euclidean dan Manhattan.
    Rumus : $\(\left( |x_2 - x_1|^p + |y_2 - y_1|^p \right)^{\frac{1}{p}}\)$

Pemilihan Nilai 𝐾 :#

  1. Jika 𝐾 kecil :

  • Model sangat sensitif terhadap noise → Jika ada outlier atau data yang tidak representatif, model bisa salah memprediksi karena hanya bergantung pada satu atau sedikit tetangga.

  • Overfitting → Model terlalu spesifik terhadap data latih, sehingga kurang bisa melakukan generalisasi pada data baru.

  1. Jika 𝐾 besar :

  • Model menjadi terlalu sederhana (underfitting) → Tidak menangkap pola lokal dalam data.

  • Prediksi lebih stabil, tetapi bisa kehilangan informasi penting karena dipengaruhi oleh terlalu banyak tetangga.

  1. Solusi : mencari nilai 𝐾 optimal dengan eksperimen, misalnya menggunakan cross-validation.

Contoh perhitungan :#

Misalkan kita memiliki 10 data :
$\( \begin{array}{|c|c|c|} \hline Class & x & y \\ \hline A & 2 & 3 \\ A & 3 & 5 \\ A & 5 & 8 \\ B & 6 & 9 \\ B & 4 & 8 \\ B & 5 & 9 \\ A & 6 & 5 \\ A & 3 & 7 \\ B & 20 & 25 \\ ? & 3 & 3 \\ \hline \end{array} \)$

  1. Menghitung jarak dengan Euclidian distance
    $\(\sqrt{(x_2 - x_1)^2 + (y_2 - y_1)^2}\)$

  • d1 (2,3)
    $\(\sqrt{(2 - 3)^2 + (3 - 3)^2} = 1 \)$

  • d2 (3,5)
    $\(\sqrt{(3 - 3)^2 + (5 - 3)^2} = 2 \)$

  • d3 (5,8)
    $\(\sqrt{(5 - 3)^2 + (8 - 3)^2} = 5.39\)$

  • d4 (6,9)
    $\(\sqrt{(6 - 3)^2 + (9 - 3)^2} = 6.71\)$

  • d5 (4,8)
    $\(\sqrt{(4 - 3)^2 + (8 - 3)^2} = 5.10\)$

  • d6 (5,9)
    $\(\sqrt{(5 - 3)^2 + (9 - 3)^2} = 6.32 \)$

  • d7 (6,5)
    $\(\sqrt{(6 - 3)^2 + (5 - 3)^2} = 3.61\)$

  • d8 (3,7)
    $\(\sqrt{(3 - 3)^2 + (7 - 3)^2} = 4 \)$

  • d9 (2,4)
    $\(\sqrt{(20 - 3)^2 + (25 - 3)^2} = 27.80\)$

  1. Merangking data secara ascending (kecil-besar), jika K= 3, maka akan diambil dari 3 teratas.

    1. d1 A (1)

    2. d2 A (2)

    3. d7 A (3.61)

    4. d8 A (4)

    5. d5 B (5.10)

    6. d3 A (5.39)

    7. d6 B (6.32)

    8. d4 B (6.71)

    9. d5 B(27.80)

Kesimpulan : jadi nilai yang dicari termasuk class A dan outlier pada data diatas ditunjukkan pada data ke 9, karena memiliki jarak yang paling jauh/besar.

Algoritma mendeteksi outlier pada Data Iris :#

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from sklearn.neighbors import NearestNeighbors

# Load dataset
file_path = "hasil_gabungan.csv"
data = pd.read_csv(file_path)

# Simpan ID jika ada
id_column = data['id'] if 'id' in data.columns else None

# Pilih hanya kolom yang digunakan untuk deteksi outlier
selected_columns = ['sepal_length', 'sepal_width', 'petal_length', 'petal_width']
data = data[selected_columns]

# Konversi semua kolom ke numerik (jika ada string, akan diubah menjadi NaN)
data = data.apply(pd.to_numeric, errors='coerce')

# Drop baris yang mengandung NaN
data = data.dropna()

# Ambil data sebagai array X
X = data.values

# Deteksi Outlier dengan K-Nearest Neighbors (KNN)
knn = NearestNeighbors(n_neighbors=3)
knn.fit(X)

# Hitung jarak ke tetangga terdekat
distances_knn, _ = knn.kneighbors(X)
mean_knn_distances = np.mean(distances_knn[:, 1:], axis=1)  # Rata-rata jarak ke tetangga

# Tentukan threshold outlier
threshold_knn = np.mean(mean_knn_distances) + 2.5 * np.std(mean_knn_distances)
outliers_knn = np.where(mean_knn_distances > threshold_knn)[0]

# Tampilkan hasil dengan ID jika ada
if id_column is not None:
    outlier_ids = id_column.iloc[outliers_knn].values
    print(f"ID Outlier terdeteksi: {outlier_ids}")
else:
    print(f"Outlier terdeteksi (index): {outliers_knn}")

# Visualisasi Data dalam berbagai kombinasi
fig, axs = plt.subplots(1, 2, figsize=(12, 6))

# Scatter plot Sepal Length vs Sepal Width
axs[0].scatter(X[:, 0], X[:, 1], label='Normal Data', color='blue', alpha=0.6)
axs[0].scatter(X[outliers_knn, 0], X[outliers_knn, 1], label='Outliers', color='red', marker='x', s=100)
axs[0].set_xlabel('Sepal Length')
axs[0].set_ylabel('Sepal Width')
axs[0].set_title('Outlier pada Sepal Length vs Sepal Width')
axs[0].legend()

# Scatter plot Petal Length vs Petal Width
axs[1].scatter(X[:, 2], X[:, 3], label='Normal Data', color='blue', alpha=0.6)
axs[1].scatter(X[outliers_knn, 2], X[outliers_knn, 3], label='Outliers', color='red', marker='x', s=100)
axs[1].set_xlabel('Petal Length')
axs[1].set_ylabel('Petal Width')
axs[1].set_title('Outlier pada Petal Length vs Petal Width')
axs[1].legend()

plt.tight_layout()
plt.show()

ID Outlier terdeteksi: [  1 101]
_images/3abd043bbcd1254bdecf1cf08ea984302ee24b641a8ea86a814d109566dccb11.png

LOF (Local Outlier Factor)#

LOF merupakan sebuah metode untuk mendeteksi outlier dengan menghitung deviasi kerapatan lokal dari titik tertentu terhadap tetangganya. Pada metode ini jika sebuah sampel memiliki kerapatan jauh lebih rendah dari tetangganya maka disebut outlier.

Contoh 10 data :#

Misalkan kita memiliki 10 data :
$\( \begin{array}{|c|c|c|} \hline Class & x & y \\ \hline 1 & 2 & 4 \\ 2 & 3 & 6 \\ 3 & 1 & 4 \\ 4 & 4 & 3 \\ 5 & 3 & 2 \\ 6 & 5 & 3 \\ 7 & 6 & 4 \\ 8 & 4 & 3 \\ 9 & 2 & 5 \\ 10 & 15 & 20 \\ \hline \end{array} \)$

Langkah-langkah LOF :#

1. Menentukan jumlah tetangga terdekat (k-nearest neighbors).#

  • Jika nilai k = 3, artinya kita akan mencari tiga tetangga terdekat untuk setiap titik.

  • Menghitung jarak dengan rumus Euclidian Distance antara setiap pasangan titik, dengan rumus :

\[\sqrt{(x_2 - x_1)^2 + (y_2 - y_1)^2}\]

Hasil jarak setiap titik :#

\(d(1,2) = \sqrt{(3 - 2)^2 + (6 - 4)^2} = 2.236....(3)\)
\(d(1,3) = \sqrt{(1 - 2)^2 + (4 - 4)^2} = 1....(1)\)
\(d(1,4) = \sqrt{(4 - 2)^2 + (3 - 4)^2} = 2.236\),
\(d(1,5) = \sqrt{(3 - 2)^2 + (2 - 4)^2} = 2.236\),
\(d(1,6) = \sqrt{(5 - 2)^2 + (3 - 4)^2} = 3.162\),
\(d(1,7) = \sqrt{(6 - 2)^2 + (4 - 4)^2} = 4\),
\(d(1,8) = \sqrt{(4 - 2)^2 + (3 - 4)^2} = 2.236\),
\(d(1,9) = \sqrt{(2 - 2)^2 + (5 - 4)^2} = 1....(2)\)
\(d(1,10) = \sqrt{(15 - 2)^2 + (20 - 4)^2} = 20.616\).

\(d(2,1) = \sqrt{(2 - 3)^2 + (4 - 6)^2} = 2.236....(2)\),
\(d(2,3) = \sqrt{(1 - 3)^2 + (4 - 6)^2} = 2.828....(3)\),
\(d(2,4) = \sqrt{(4 - 3)^2 + (3 - 6)^2} = 3.162\),
\(d(2,5) = \sqrt{(3 - 3)^2 + (2 - 6)^2} = 4\),
\(d(2,6) = \sqrt{(5 - 3)^2 + (3 - 6)^2} = 3.606\),
\(d(2,7) = \sqrt{(6 - 3)^2 + (4 - 6)^2} = 3.606\),
\(d(2,8) = \sqrt{(4 - 3)^2 + (3 - 6)^2} = 3.162\),
\(d(2,9) = \sqrt{(2 - 3)^2 + (5 - 6)^2} = 1.414....(1)\)
\(d(2,10) = \sqrt{(15 - 3)^2 + (20 - 6)^2} = 18.439\).

\(d(3,1) = \sqrt{(2 - 1)^2 + (4 - 4)^2} = 1....(1)\),
\(d(3,2) = \sqrt{(3 - 1)^2 + (6 - 4)^2} = 2.828....(3)\),
\(d(3,4) = \sqrt{(4 - 1)^2 + (3 - 4)^2} = 3.162\),
\(d(3,5) = \sqrt{(3 - 1)^2 + (2 - 4)^2} = 2.828\),
\(d(3,6) = \sqrt{(5 - 1)^2 + (3 - 4)^2} = 4.123\),
\(d(3,7) = \sqrt{(6 - 1)^2 + (4 - 4)^2} = 5\),
\(d(3,8) = \sqrt{(4 - 1)^2 + (3 - 4)^2} = 3.162\),
\(d(3,9) = \sqrt{(2 - 1)^2 + (5 - 4)^2} = 1.414....(2)\),
\(d(3,10) = \sqrt{(15 - 1)^2 + (20 - 4)^2} = 21.260\).

\(d(4,1) = \sqrt{(2 - 4)^2 + (4 - 3)^2} = 2.236\),
\(d(4,2) = \sqrt{(3 - 4)^2 + (6 - 3)^2} = 3.162\),
\(d(4,3) = \sqrt{(1 - 4)^2 + (4 - 3)^2} = 3.162\),
\(d(4,5) = \sqrt{(3 - 4)^2 + (2 - 3)^2} = 1.414....(3)\),
\(d(4,6) = \sqrt{(5 - 4)^2 + (3 - 3)^2} = 1....(2)\),
\(d(4,7) = \sqrt{(6 - 4)^2 + (4 - 3)^2} = 2.236\),
\(d(4,8) = \sqrt{(4 - 4)^2 + (3 - 3)^2} = 0....(1)\),
\(d(4,9) = \sqrt{(2 - 4)^2 + (5 - 3)^2} = 2.828\),
\(d(4,10) = \sqrt{(15 - 4)^2 + (20 - 3)^2} = 20.248\).

\(d(5,1) = \sqrt{(2 - 3)^2 + (4 - 2)^2} = 2.236....(3)\),
\(d(5,2) = \sqrt{(3 - 3)^2 + (6 - 2)^2} = 4\),
\(d(5,3) = \sqrt{(1 - 3)^2 + (4 - 2)^2} = 2.828\),
\(d(5,4) = \sqrt{(4 - 3)^2 + (3 - 2)^2} = 1.414....(1)\),
\(d(5,6) = \sqrt{(5 - 3)^2 + (3 - 2)^2} = 2.236\),
\(d(5,7) = \sqrt{(6 - 3)^2 + (4 - 2)^2} = 3.606\),
\(d(5,8) = \sqrt{(4 - 3)^2 + (3 - 2)^2} = 1.414....(2)\),
\(d(5,9) = \sqrt{(2 - 3)^2 + (5 - 2)^2} = 3.162\),
\(d(5,10) = \sqrt{(15 - 3)^2 + (20 - 2)^2} = 21.633\).

\(d(6,1) = \sqrt{(2 - 5)^2 + (4 - 3)^2} = 3.162\),
\(d(6,2) = \sqrt{(3 - 5)^2 + (6 - 3)^2} = 3.606\),
\(d(6,3) = \sqrt{(1 - 5)^2 + (4 - 3)^2} = 4.123\),
\(d(6,4) = \sqrt{(4 - 5)^2 + (3 - 3)^2} = 1....(1)\),
\(d(6,5) = \sqrt{(3 - 5)^2 + (2 - 3)^2} = 2.236\).
\(d(6,7) = \sqrt{(6 - 5)^2 + (4 - 3)^2} = 1.414....(3)\),
\(d(6,8) = \sqrt{(4 - 5)^2 + (3 - 3)^2} = 1....(2)\),
\(d(6,9) = \sqrt{(2 - 5)^2 + (5 - 3)^2} = 3.606\),
\(d(6,10) = \sqrt{(15 - 5)^2 + (20 - 3)^2} = 19.723\).

\(d(7,1) = \sqrt{(2 - 6)^2 + (4 - 4)^2} = 4\),
\(d(7,2) = \sqrt{(3 - 6)^2 + (6 - 4)^2} = 3.606\),
\(d(7,3) = \sqrt{(1 - 6)^2 + (4 - 4)^2} = 5\),
\(d(7,4) = \sqrt{(4 - 6)^2 + (3 - 4)^2} = 2.236....(2)\),
\(d(7,5) = \sqrt{(3 - 6)^2 + (2 - 4)^2} = 3.606\).
\(d(7,6) = \sqrt{(5 - 6)^2 + (3 - 4)^2} = 1.414....(1)\),
\(d(7,8) = \sqrt{(4 - 6)^2 + (3 - 4)^2} = 2.236....(3)\),
\(d(7,9) = \sqrt{(2 - 6)^2 + (5 - 4)^2} = 4.123\),
\(d(7,10) = \sqrt{(15 - 6)^2 + (20 - 4)^2} = 18.358\).

\(d(8,1) = \sqrt{(2 - 4)^2 + (4 - 3)^2} = 2.236\),
\(d(8,2) = \sqrt{(3 - 4)^2 + (6 - 3)^2} = 3.162\),
\(d(8,3) = \sqrt{(1 - 4)^2 + (4 - 3)^2} = 3.162\),
\(d(8,4) = \sqrt{(4 - 4)^2 + (3 - 3)^2} = 0....(1)\),
\(d(8,5) = \sqrt{(3 - 4)^2 + (2 - 3)^2} = 1.414....(3)\).
\(d(8,6) = \sqrt{(5 - 4)^2 + (3 - 3)^2} = 1....(2)\),
\(d(8,7) = \sqrt{(6 - 4)^2 + (4 - 3)^2} = 2.236\),
\(d(8,9) = \sqrt{(2 - 4)^2 + (5 - 3)^2} = 2.828\),
\(d(8,10) = \sqrt{(15 - 4)^2 + (20 - 3)^2} = 20.248\).

\(d(9,1) = \sqrt{(2 - 2)^2 + (4 - 5)^2} = 1....(1)\),
\(d(9,2) = \sqrt{(3 - 2)^2 + (6 - 5)^2} = 1.414....(2)\),
\(d(9,3) = \sqrt{(1 - 2)^2 + (4 - 5)^2} = 1.414....(3)\),
\(d(9,4) = \sqrt{(4 - 2)^2 + (3 - 5)^2} = 2.828\),
\(d(9,5) = \sqrt{(3 - 2)^2 + (2 - 5)^2} = 3.162\).
\(d(9,6) = \sqrt{(5 - 2)^2 + (3 - 5)^2} = 3.606\),
\(d(9,7) = \sqrt{(6 - 2)^2 + (4 - 5)^2} = 4.123\),
\(d(9,8) = \sqrt{(4 - 2)^2 + (3 - 5)^2} = 2.828\),
\(d(9,10) = \sqrt{(15 - 2)^2 + (20 - 5)^2} = 19.849\).

\(d(10,1) = \sqrt{(2 - 15)^2 + (4 - 20)^2} = 20.616\),
\(d(10,2) = \sqrt{(3 - 15)^2 + (6 - 20)^2} = 18.439\),
\(d(10,3) = \sqrt{(1 - 15)^2 + (4 - 20)^2} = 21.260\),
\(d(10,4) = \sqrt{(4 - 15)^2 + (3 - 20)^2} = 20.248\),
\(d(10,5) = \sqrt{(3 - 15)^2 + (2 - 20)^2} = 21.633\).
\(d(10,6) = \sqrt{(5 - 15)^2 + (3 - 20)^2} = 19.723....(3)\),
\(d(10,7) = \sqrt{(6 - 15)^2 + (4 - 20)^2} = 18.358....(1)\),
\(d(10,8) = \sqrt{(4 - 15)^2 + (3 - 20)^2} = 20.248\),
\(d(10,9) = \sqrt{(2 - 15)^2 + (5 - 20)^2} = 19.849....(2)\).

3 tetangga terdekat untuk setiap titik#

\[\begin{split} \begin{array}{|c|c|c|} \hline Class & K-Neighbors \\ \hline 1 & 3,9,2 \\ 2 & 9,1,3 \\ 3 & 1,9,2 \\ 4 & 8,6,5 \\ 5 & 4,8,1 \\ 6 & 4,8,7 \\ 7 & 6,4,8 \\ 8 & 4,6,5 \\ 9 & 1,2,3 \\ 10 & 7,9,6 \\ \hline \end{array} \end{split}\]

2. Menghitung reachability distance untuk setiap titik.#

\[RD_k(A, B) = \max ({ k\text{-}distance(B), d(A, B) })\]

Penjelasan :#

  • \(RD_k(A,B) =\) Reachability Distance dari titik \(A\) ke titik \(B\).

  • \(k\text{-}distance(B) =\) jarak antara titik 𝐵 dan tetangga terdekatnya ke-𝑘

  • \(d(A,B) =\) jarak antara titik \(A\) dan \(B\).

Hasil RD setiap titik :#

\(RD(1,2) = \max ({ 3\text{-}distance(2), d(1, 2) }) = \max(2.828427125,2.236067977) = 2.828427125\)
\(RD(1,3) = \max ({ 3\text{-}distance(3), d(1, 3) }) = 2,828427125\)
\(RD(1,4) = \max ({ 3\text{-}distance(4), d(1, 4) })= 2,236067977\),
\(RD(1,5) = \max ({ 3\text{-}distance(5), d(1, 5) }) = 2,236067977\),
\(RD(1,6) = \max ({ 3\text{-}distance(6), d(1, 6) }) = 3,16227766\),
\(RD(1,7) = \max ({ 3\text{-}distance(7), d(1, 7) }) = 4\),
\(RD(1,8) = \max ({ 3\text{-}distance(8), d(1, 8) }) = 2,236067977\),
\(RD(1,9) = \max ({ 3\text{-}distance(9), d(1, 9) }) = 1,414213562\)
\(RD(1,10) = \max ({ 3\text{-}distance(10), d(1, 10)}) = 20,61552813\).

\(RD(2,1) = \max ({ 3\text{-}distance(1), d(2, 1) }) = 2,236067977\)
\(RD(2,3) = \max ({ 3\text{-}distance(3), d(2, 3) }) = 2,828427125\)
\(RD(2,4) = \max ({ 3\text{-}distance(4), d(2, 4) }) = 3,16227766\),
\(RD(2,5) = \max ({ 3\text{-}distance(5), d(2, 5) }) = 4\),
\(RD(2,6) = \max ({ 3\text{-}distance(6), d(2, 6) }) = 3,605551275\),
\(RD(2,7) = \max ({ 3\text{-}distance(7), d(2, 7) }) = 3,605551275\),
\(RD(2,8) = \max ({ 3\text{-}distance(8), d(2, 8) }) = 3,16227766\),
\(RD(2,9) = \max ({ 3\text{-}distance(9), d(2, 9) }) = 1,414213562\)
\(RD(2,10) = \max ({ 3\text{-}distance(10), d(2, 10) }) = 18,43908891\).

\(RD(3,1) = \max ({ 3\text{-}distance(1), d(3, 1) }) = 2,236067977\)
\(RD(3,2) = \max ({ 3\text{-}distance(2), d(3, 2) }) = 2,828427125\)
\(RD(3,4) = \max ({ 3\text{-}distance(4), d(3, 4) }) = 3,16227766\),
\(RD(3,5) = \max ({ 3\text{-}distance(5), d(3, 5) }) = 2,828427125\),
\(RD(3,6) = \max ({ 3\text{-}distance(6), d(3, 6) }) = 4,123105626\),
\(RD(3,7) = \max ({ 3\text{-}distance(7), d(3, 7) }) = 5\),
\(RD(3,8) = \max ({ 3\text{-}distance(8), d(3, 8) }) = 3,16227766\),
\(RD(3,9) = \max ({ 3\text{-}distance(9), d(3, 9) }) = 1,414213562\)
\(RD(3,10) = \max ({ 3\text{-}distance(10), d(3, 10) }) = 21,26029163\).

\(RD(4,1) = \max ({ 3\text{-}distance(1), d(4, 1) }) = 2,236067977\)
\(RD(4,2) = \max ({ 3\text{-}distance(2), d(4, 2) }) = 3,16227766\)
\(RD(4,3) = \max ({ 3\text{-}distance(3), d(4, 3) }) = 3,16227766\),
\(RD(4,5) = \max ({ 3\text{-}distance(5), d(4, 5) }) = 2,236067977\),
\(RD(4,6) = \max ({ 3\text{-}distance(6), d(4, 6) }) = 1,414213562\),
\(RD(4,7) = \max ({ 3\text{-}distance(7), d(4, 7) }) = 2,236067977\),
\(RD(4,8) = \max ({ 3\text{-}distance(8), d(4, 8) }) = 1,414213562\),
\(RD(4,9) = \max ({ 3\text{-}distance(9), d(4, 9) }) = 2,828427125\)
\(RD(4,10) = \max ({ 3\text{-}distance(10), d(4, 10) }) = 20,24845673\).

\(RD(5,1) = \max ({ 3\text{-}distance(1), d(5, 1) }) = 2,236067977\)
\(RD(5,2) = \max ({ 3\text{-}distance(2), d(5, 2) }) = 4\)
\(RD(5,3) = \max ({ 3\text{-}distance(3), d(5, 3) }) = 2,828427125\),
\(RD(5,4) = \max ({ 3\text{-}distance(4), d(5, 4) }) = 1,414213562\),
\(RD(5,6) = \max ({ 3\text{-}distance(6), d(5, 6) }) = 2,236067977\),
\(RD(5,7) = \max ({ 3\text{-}distance(7), d(5, 7) }) = 3,605551275\),
\(RD(5,8) = \max ({ 3\text{-}distance(8), d(5, 8) }) = 1,414213562\),
\(RD(5,9) = \max ({ 3\text{-}distance(9), d(5, 9) }) = 3,16227766\)
\(RD(5,10) = \max ({ 3\text{-}distance(10), d(5, 10) }) = 21,63330765\).

\(RD(6,1) = \max ({ 3\text{-}distance(1), d(6, 1) }) = 3,16227766\)
\(RD(6,2) = \max ({ 3\text{-}distance(2), d(6, 2) }) = 3,605551275\)
\(RD(6,3) = \max ({ 3\text{-}distance(3), d(6, 3) }) = 4,123105626\),
\(RD(6,4) = \max ({ 3\text{-}distance(4), d(6, 4) }) = 1,414213562\),
\(RD(6,5) = \max ({ 3\text{-}distance(5), d(6, 5) }) = 2,236067977\),
\(RD(6,7) = \max ({ 3\text{-}distance(7), d(6, 7) })= 2,236067977\),
\(RD(6,8) = \max ({ 3\text{-}distance(8), d(6, 8) }) = 1,414213562\),
\(RD(6,9) = \max ({ 3\text{-}distance(9), d(6, 9) }) = 3,605551275\)
\(RD(6,10) = \max ({ 3\text{-}distance(10), d(6, 10) }) = 19,72308292\).

\(RD(7,1) = \max ({ 3\text{-}distance(1), d(7, 1) }) = 4\)
\(RD(7,2) = \max ({ 3\text{-}distance(2), d(7, 2) }) = 3,605551275\)
\(RD(7,3) = \max ({ 3\text{-}distance(3), d(7, 3) }) = 5\),
\(RD(7,4) = \max ({ 3\text{-}distance(4), d(7, 4) }) = 2,236067977\),
\(RD(7,5) = \max ({ 3\text{-}distance(5), d(7, 5) }) = 3,605551275\),
\(RD(7,6) = \max ({ 3\text{-}distance(6), d(7, 6) }) = 1,414213562\),
\(RD(7,8) = \max ({ 3\text{-}distance(8), d(7, 8) }) = 2,236067977\),
\(RD(7,9) = \max ({ 3\text{-}distance(9), d(7, 9) }) = 4,123105626\)
\(RD(7,10) = \max ({ 3\text{-}distance(10), d(7, 10) }) = 18,35755975\).

\(RD(8,1) = \max ({ 3\text{-}distance(1), d(8, 1) }) = 2,236067977\)
\(RD(8,2) = \max ({ 3\text{-}distance(2), d(8, 2) }) = 3,16227766\)
\(RD(8,3) = \max ({ 3\text{-}distance(3), d(8, 3) }) = 3,16227766\),
\(RD(8,4) = \max ({ 3\text{-}distance(4), d(8, 4) }) = 1,414213562\),
\(RD(8,5) = \max ({ 3\text{-}distance(5), d(8, 5) }) = 2,236067977\),
\(RD(8,6) = \max ({ 3\text{-}distance(6), d(8, 6) }) = 1,414213562\),
\(RD(8,7) = \max ({ 3\text{-}distance(7), d(8, 7) }) = 2,236067977\),
\(RD(8,9) = \max ({ 3\text{-}distance(9), d(8, 9) }) = 2,828427125\)
\(RD(8,10) = \max ({ 3\text{-}distance(10), d(8, 10) }) = 20,24845673\).

\(RD(9,1) = \max ({ 3\text{-}distance(1), d(9, 1) }) = 2,236067977\)
\(RD(9,2) = \max ({ 3\text{-}distance(2), d(9, 2) }) = 2,828427125\)
\(RD(9,3) = \max ({ 3\text{-}distance(3), d(9, 3) }) = 2,828427125\),
\(RD(9,4) = \max ({ 3\text{-}distance(4), d(9, 4) }) = 2,828427125\),
\(RD(9,5) = \max ({ 3\text{-}distance(5), d(9, 5) }) = 3,16227766\),
\(RD(9,6) = \max ({ 3\text{-}distance(6), d(9, 6) }) = 3,605551275\),
\(RD(9,7) = \max ({ 3\text{-}distance(7), d(9, 7) }) = 4,123105626\),
\(RD(9,8) = \max ({ 3\text{-}distance(8), d(9, 8) }) = 2,828427125\)
\(RD(9,10) = \max ({ 3\text{-}distance(10), d(9, 10) }) = 19,84943324\).

\(RD(10,1) = \max ({ 3\text{-}distance(1), d(10, 1) }) = 2,236067977\)
\(RD(10,2) = \max ({ 3\text{-}distance(2), d(10, 2) }) = 2,828427125\)
\(RD(10,3) = \max ({ 3\text{-}distance(3), d(10, 3) }) = 2,828427125\),
\(RD(10,4) = \max ({ 3\text{-}distance(4), d(10, 4) }) = 2,828427125\),
\(RD(10,5) = \max ({ 3\text{-}distance(5), d(10, 5) }) = 3,16227766\),
\(RD(10,6) = \max ({ 3\text{-}distance(6), d(10, 6) }) = 3,605551275\),
\(RD(10,7) = \max ({ 3\text{-}distance(7), d(10, 7) }) = 4,123105626\),
\(RD(10,8) = \max ({ 3\text{-}distance(8), d(10, 8) }) = 2,828427125\)
\(RD(10,9) = \max ({ 3\text{-}distance(9), d(10, 9) }) = 19,84943324\).

3. Menghitung local reachability density (LRD).#

\[lrd_k(A) := \frac{|N_k(A)|}{\sum_{B \in N_k(A)} \text{reachability-distance}_k(A, B)}\]

Penjelasan :#

  • \(lrd_k(A) =\) Local Reachability Density (LRD) dari titik \(A\).

  • \({|N_k(A)|} =\) Jumlah k-tetangga terdekat \(A\).

  • \({\sum_{B \in N_k(A)} \text{reachability-distance}_k(A, B)} =\) Jumlah RD antara titik \(A\) dan semua k-nearest neighbors dari A.

Hasil dari LRD setiap titik :#

LRD(1) \(= 3/(2,828427125+2,828427125+1,414213562) = 0,4242640687\)
LRD(2) \(= 3/(2,236067977+2,828427125+1,414213562) = 0,4630552407\)
LRD(3) \(= 3/(2,236067977+2,828427125+1,414213562) = 0,4630552407\)
LRD(4) \(= 3/(2,236067977+1,414213562+1,414213562) = 0,5923591474\)
LRD(5) \(= 3/(2,236067977+1,414213562+1,414213562) = 0,5923591474\)
LRD(6) \(= 3/(1,414213562+2,236067977+1,414213562) = 0,5923591474\)
LRD(7) \(= 3/(2,236067977+1,414213562+2,236067977) = 0,5096537322\)
LRD(8) \(= 3/(1,414213562+2,236067977+1,414213562) = 0,5923591474\)
LRD(9) \(= 3/(2,236067977+2,828427125+2,828427125) = 0,3800873636\)
LRD(10) \(= 3/(19,72308292+18,35755975+19,84943324) = 0,05178657119\)

4. Menghitung LOF sebagai rasio LRD titik terhadap LRD tetangganya.#

\[{LOF}(A) = \frac{\text{rata-rata LRD tetangga } A}{\text{LRD}(A)}\]

Hasil LOF setiap titik :#

LOF(1) \(= ((0,4630552407 + 0,4630552407 + 0,3800873636) / 3 ) / 0,4242640687 = 1,026245949\)
LOF(2) \(= ((0,4242640687 + 0,4630552407 + 0,3800873636) / 3 ) / 0,4630552407 = 0,9123509548\)
LOF(3) \(= ((0,4242640687 + 0,4630552407 + 0,3800873636) / 3 ) / 0,4630552407 = 0,9123509548\)
LOF(4) \(= ((0,4242640687 + 0,5923591474 + 0,5923591474) / 3 ) / 0,5923591474 = 1\)
LOF(5) \(= ((0,5923591474 + 0,5923591474 + 0,4242640687) / 3 ) / 0,5923591474 = 0,9054092553\)
LOF(6) \(= ((0,5923591474 + 0,5096537322 + 0,5923591474) / 3 ) / 0,5923591474 = 0,95345987\)
LOF(7) \(= ((0,5923591474 + 0,5923591474 + 0,5923591474) / 3 ) / 0,5096537322 = 1,16227766\)
LOF(8) \(= ((0,5923591474 + 0,5923591474 + 0,5923591474) / 3 ) / 0,5923591474 = 1\)
LOF(9) \(= ((0,4242640687 + 0,4630552407 + 0,4630552407) / 3 ) / 0,3800873636 = 1,184266811\)
LOF(10) \(= ((0,5923591474 + 0,5096537322 + 0,3800873636) / 3 ) / 0,05178657119 = 9,539797733\)

5. Menentukan apakah titik termasuk outlier berdasarkan skor LOF.#

  • LOF(\(k\)) ≈ 1, artinya titik tersebut memiliki kepadatan yang mirip dengan tetangganya, sehingga dianggap sebagai bagian dari kelompok (inlier).

  • LOF(\(k\)) < 1, artinya titik ini memiliki kepadatan lebih tinggi dibandingkan tetangganya, termasuk inlier karena berada di area yang lebih rapat.

  • LOF(\(k\)) > 1, artinya titik ini memiliki kepadatan lebih jarang dibandingkan dengan tetangganya. Semakin besar nilai LOF, semakin kuat indikasi bahwa titik tersebut adalah outlier.

Pada 10 data diatas yang termasuk outlier yaitu pada titik 10 karena jumlah LOF pada titik ini lebih dari 1, yaitu 9,539797733. Sedangkan pada titik lain kurang / sama dengan 1 yang menandakan bahwa titik tersebut termasuk inlier.

from sklearn.neighbors import LocalOutlierFactor
import numpy as np

# Data dengan ID
data = np.array([
    [1, 2, 4],
    [2, 3, 6],
    [3, 1, 4],
    [4, 4, 3],
    [5, 3, 2],
    [6, 5, 3],
    [7, 6, 4],
    [8, 4, 3],
    [9, 2, 5],
    [10, 15, 20]  # Titik outlier yang mencolok
])

# Ambil hanya koordinat (x, y) untuk LOF
X = data[:, 1:]

# LOF dengan 3 tetangga dan kontaminasi 10%
clf = LocalOutlierFactor(n_neighbors=3, contamination=0.1)
y_pred = clf.fit_predict(X)

# Skor outlier LOF
X_scores = -clf.negative_outlier_factor_

# Cetak hasil dengan format tabel
print("ID\tX\tY\tLOF Score\tPrediksi")
print("-" * 40)
for idx, (x, y), score, pred in zip(data[:, 0], X, X_scores, y_pred):
    pred_label = "Outlier (-1)" if pred == -1 else "Inlier (1)"
    print(f"{int(idx)}\t{x}\t{y}\t{score:.3f}\t{pred_label}")

ID	X	Y	LOF Score	Prediksi
----------------------------------------
1	2	4	1.026	Inlier (1)
2	3	6	0.912	Inlier (1)
3	1	4	0.912	Inlier (1)
4	4	3	1.000	Inlier (1)
5	3	2	0.905	Inlier (1)
6	5	3	0.953	Inlier (1)
7	6	4	1.162	Inlier (1)
8	4	3	1.000	Inlier (1)
9	2	5	1.184	Inlier (1)
10	15	20	9.829	Outlier (-1)
